Specifications

Power output: 25 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 50kHz

Total harmonic distortion: 0.5%

Damping factor: 30

Input sensitivity: 2mV (mic), 2.5mV (MM), 100mV (line)

Signal to noise ratio: 76dB (MM), 95dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 410 x 145 x 280mm

Weight: 6.5kg

Year: 1978

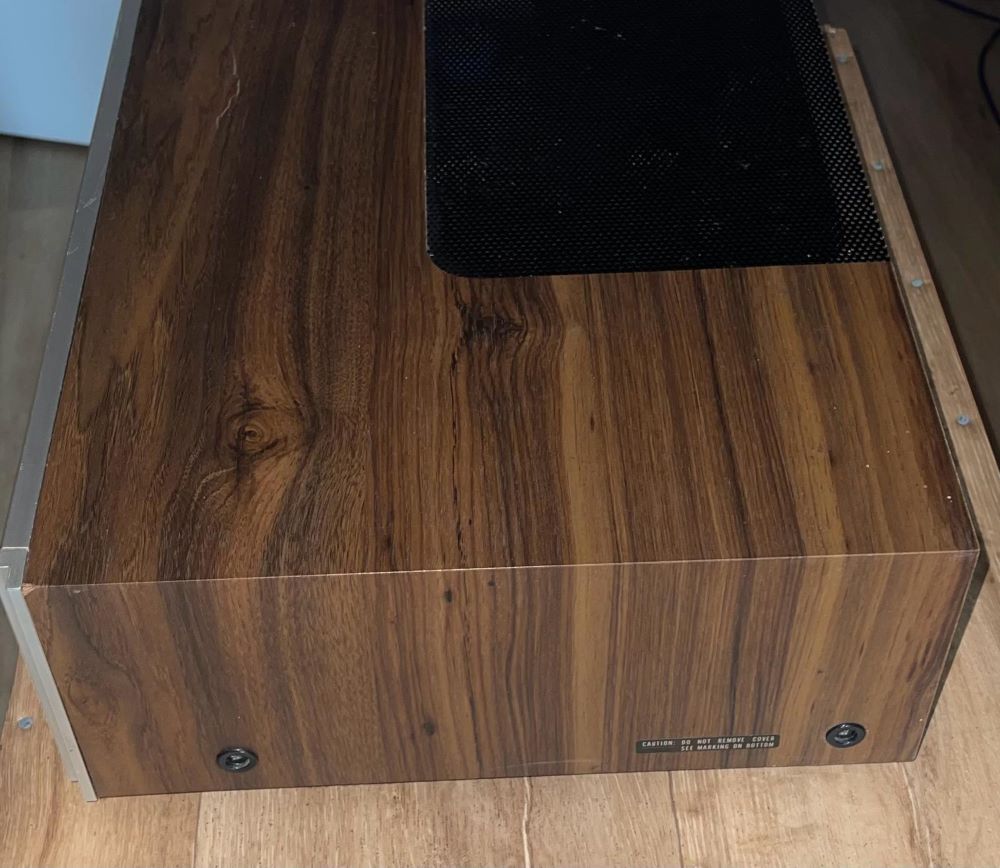

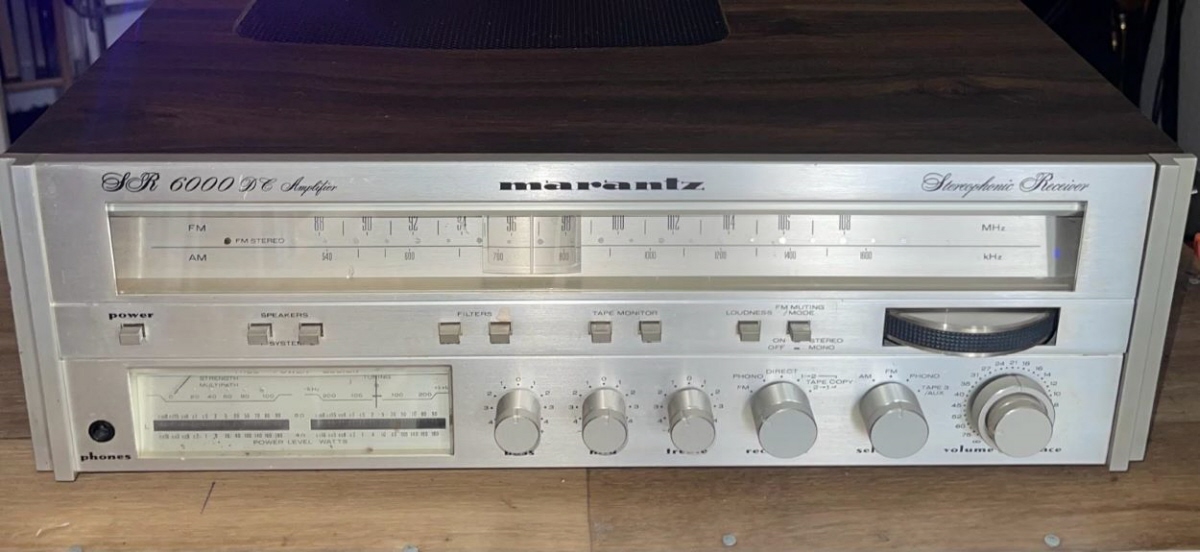

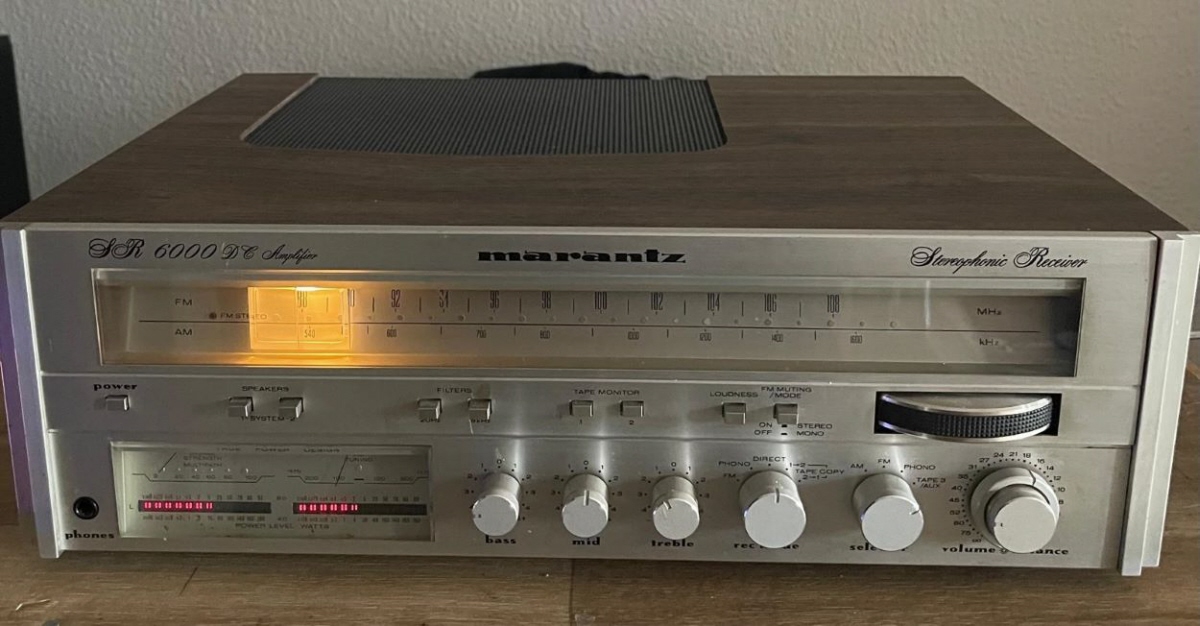

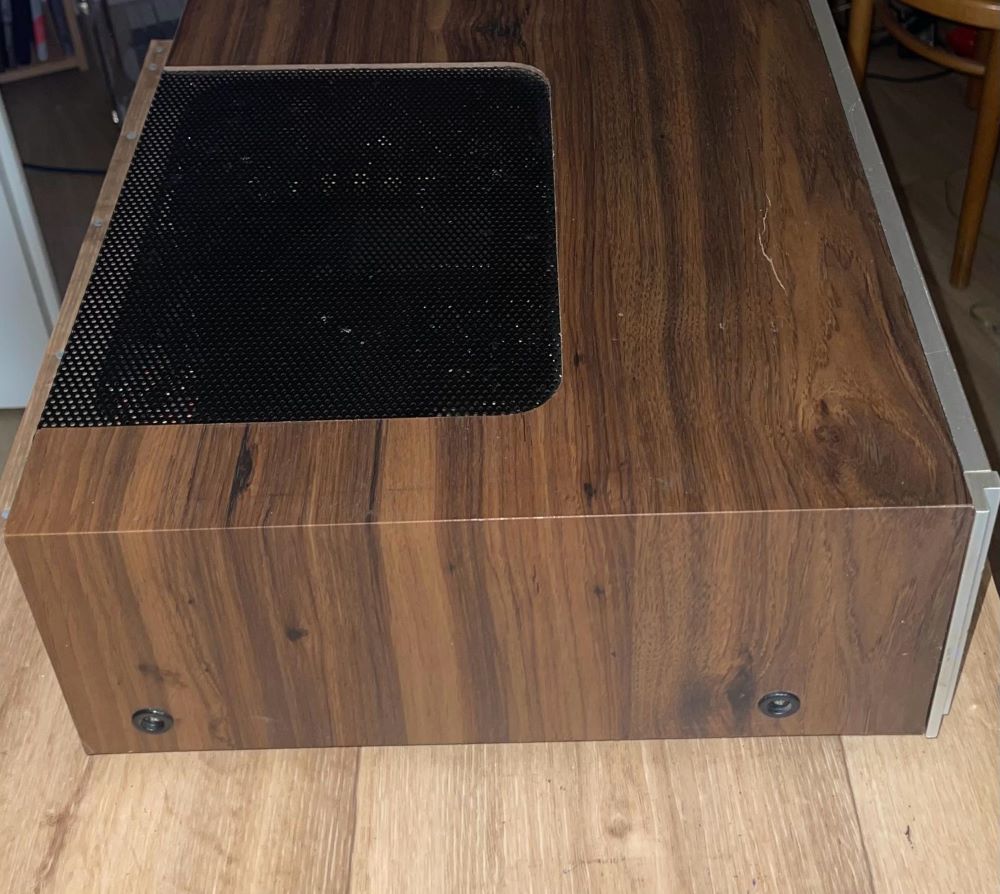

Sinto-Amplificatore Marantz SR-6000 in ottimo stato estetico e ben funzionante, eccetto l'illuminazione in alcune parti come gli indicatori di picco (VU-Meters) e scala programmi.

Indicatori di picco a Led funzionano perfettamente e con precisione.

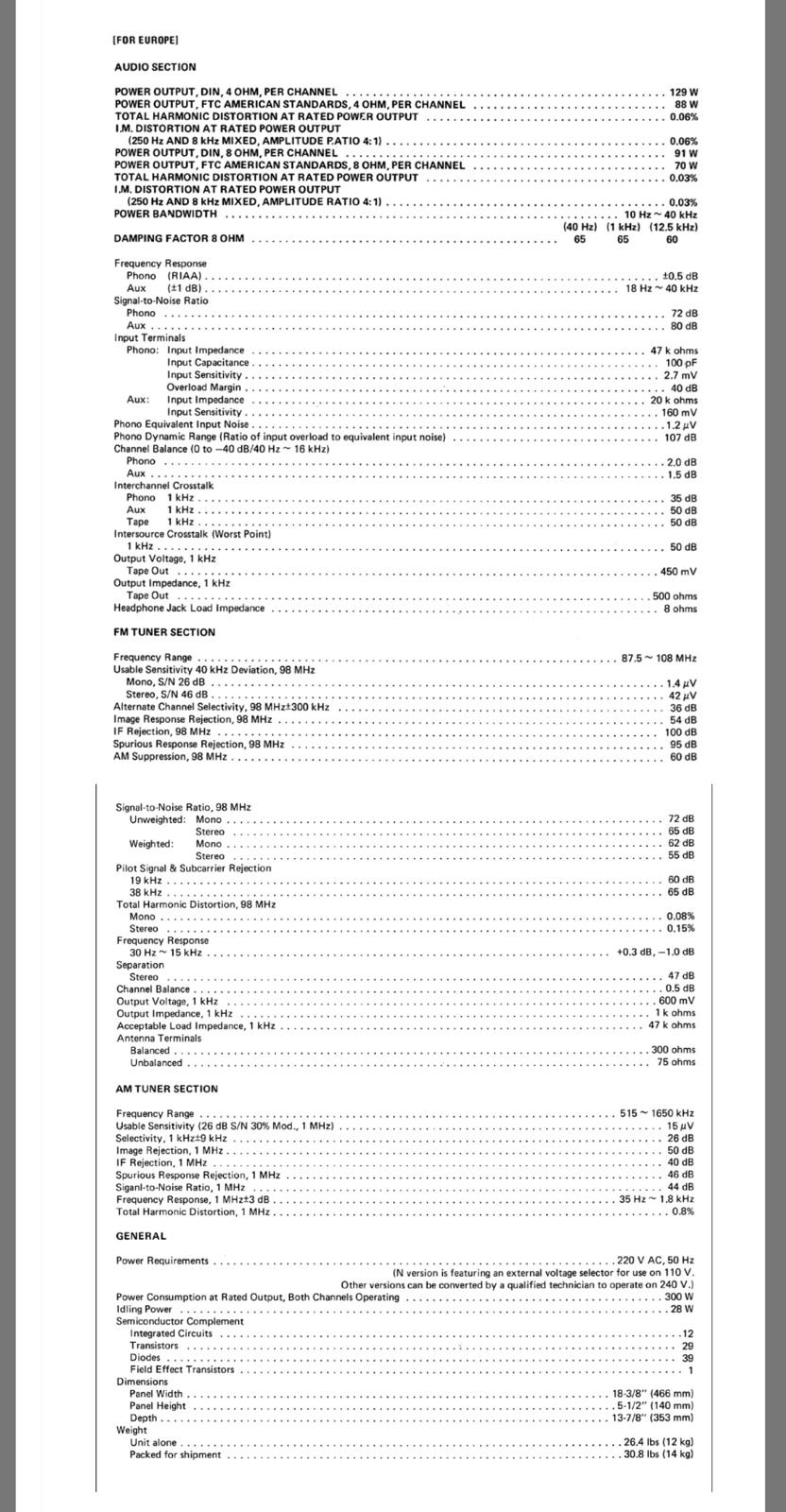

Tuning range: FM, MW

Power output: 70 watts per channel into 8Ω (stereo)

Frequency response: 18Hz to 40kHz

Total harmonic distortion: 0.03%

Damping factor: 60

Input sensitivity: 2.7mV (MM), 160mV (line)

Signal to noise ratio: 72dB (MM), 80dB (line)

Output: 450mV (line)

Semiconductors: 12 x IC, 29 x transistors, 39 x diodes, 1 x FET

Dimensions: 466 x 140 x 353mm

Weight: 12kg

Impianto Stereo Siemens composta da Sintoamplificatore RS-555 + Registratore a cassette RC-555. Entrambi gli apparecchi in ottimo stato estetico e perfettamente funzionanti.

Registratore appena revisionato. Sostituite le cinghie, ricalibrato e tenuto in funzione per diverse ore per accertarsi del perfetto funzionamento. Costo revisione: 172 Euro. Copia della fattura verrà consegnata insieme all'impianto.

Cliccare sull'immagine per ingrandire le foto!

Data RC- 555 Tape Deck

Specifications

Type: 2-head, single compact cassette deck

Track System: 2-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x capstan, 1 x reel

Tape Type: type I, CrO2, FeCr

Noise Reduction: B

Frequency Response: 30Hz to 17kHz  (FeCr tape)

Signal to Noise Ratio: 67dB  (dolby B)

Wow and Flutter: 0.1%

Total Harmonic Distortion: 1.4%

Input: 0.3mV (mic)

Output: 1V (line)

Year: 1979

• Manufacturer: Siemens
• Model: RS 555, component of the complete system Siemens System 555
• Type: Receiver
• Years of manufacture: 1979 - 1983
• Manufactured in:
• Color: Brown / Bronze
• Remote control: no
• Power consumption: max 340 W
• Dimensions: 464 x 140 x 300 mm
• Weight: 15.2 kg
• Original price approx.: 1'500 DM

Connections

• Number of inputs: 4
  • Tape-/Cassettedeek (2x, one of them for rear tape control)
  • record player
  • microphone
• Number of outputs: 3
  • 2x LS pairs
  • stereo headphones

Technical Data

Amplifier

• Continuous power (at distortion)

4 Ohm: 60 W

• Dynamic power
  • 4 Ohm: 100 W
• Total harmonic distortion: 0,09%
• Attenuation factor:
• Frequency response: 12-25 000 Hz
• Signal-to-noise ratio: >60 dB Phono/TB
• Stereo channel separation:
• Tone control:
  • Bass: ±10dB at 100 kHz

Treble: ±10dB at 10 kHz

• Loudness:
• High Filter: -12/octave at 3 kHz
• Low Filter (Subsonic): -12/octave at 50 Hz

Tuner

• Reception: FM, MW, LW, KW
• Frequencies:
  • FM: 87.5-108.79 MHz

MW: 522-1619 kHz LW: 146-361 kHz CW1: 6-10/30-50 MHz/m

CW2: 10-14/21-30 MHz/m

CW3: 14-18/16-21 MHz/m

• Frequency response: 20 - 15,000 Hz (±3 dB).
• Input sensitivity:
  • Mono: 0.7 µV at 26 dB

Stereo: 30 µV at 46 dB Distortion factor: <0,1%

• Signalrauschabstand:
  • Mono: >70 dB

Stereo: >50 dB

• Channel separation:
• Selectivity: >65 dB
• Co-wave selection:
• Spurious wave selection:
• IF attenuation:
• IF attenuation: >90 dB
• AM suppression: >50 dB
• Station memory: 36
  Special Features
• Built-in 24-hour digital timer - with LED digits to control the receiver and cassette deck.
• Electronic station search with frequency steps according to the international wave plan.
• Display instruments for field strength, VHF centre display and reception frequency (analogue display).
• In conjunction with the station search, it is possible to select only the strong stations automatically.

Registratore a cassette:
